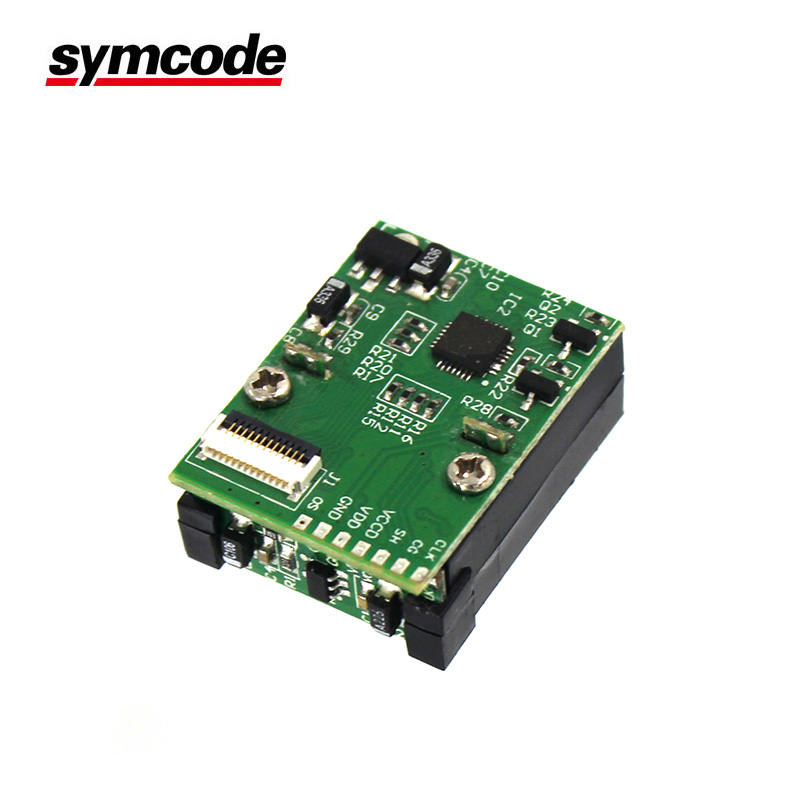

OEM ODM 1D CCD barcode scanner /
code bar scanner / reader module
Advantage
CCD Scan Element Type, can scan the code in computer/PC
Super decoding ability
Decoding rate: 200 times per second
Customer setting: Barcode setting mode, easy to operate
Full independent intellectual property right
Intelligent AGC control
Antiknock, full quakeproof design, withstand 2m drops
Comfortable button, service life of button up to 5million times
Support 20 countries keyboard language
OEM ccd laser barcode scanner module / 1d barcode reader module
| | Type | 1D CCD barcode scanner module |
| | Weight | <6g |
| | Size | 26.5mm L * 20mm W * 11.5mm H |
| | Interface | USB/TTL-RS232/PS2 |
| | Connector | FPC 12pin pitch 0.5 |
| | Light source | Visible red light, CCD 632nm |
| | Optical system | Linear CCD Sensor |
| | Resolution | 2500 |
| | CPU | ARM32-bit |
| | Decoding speed | 300times/sec |
| | Resolution | ≥4mil/0.1mm@PCS90% |
| | Depth of field | 40-500mm |
| | Print contrast | ≥30% |
| | Read angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| | | Pitch:±60° |
| | | Roll: ±30° |
| | | Skew: ±60° |
| | Operating Voltage | DC 3.3V-5V |
| | Current | 110mA；30mA |
| | Ambient light resistance | 100,000Lux Max |
| | Support barcode type | EAN-8, EAN-13, Codabar, CODE11,CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT , Interleaved 2 of 5, Matrix 2 of 5,Industrial 2 of 5 , MSI,Plessey, ITF14.
|
FAQ
Q1: Product OEM?
A1: Yes, the cost need to be added separately.
Q2: Customer service?
A2: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
Q3: What about payment?
A3: Payment terms: T/T,West Union and L/C etc.
Q4: Can you list the product of your company?
A4: Barcode Scanner Module, Bluetooth Barcode/RFID Scanner, Gun-type Barcode Scanner
Q5: Where can we download the SDK/user manual for some of your products?
A5: SDK/User manual will be sent to you by email after the sample order.
Q6: Warranty time?
A6: 1 year
Q7: Do you provide EVK for barcode scanner module?
A7: Yes,but not free.
