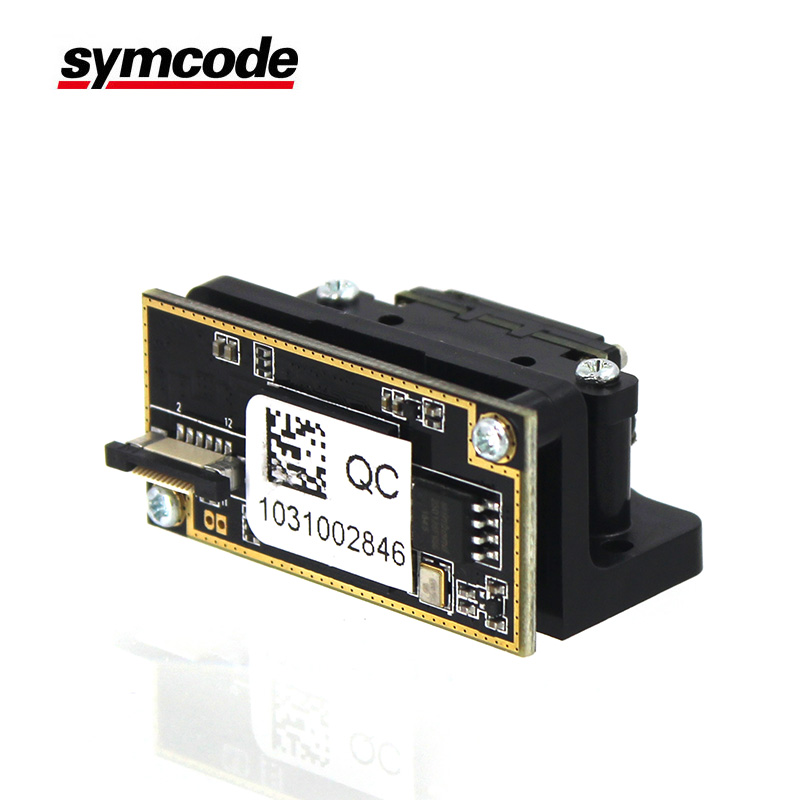

Multiple Interface Barcode Scan Engine / 2D Barcode Module Host Edit Function

  • 1
  • 2
  • 3

Brand Name : symcode

Model Number : MJ-1000

Certification : CE FCC ROHS IP54

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram

Supply Ability : 50,000pcs per month

Delivery Time : Sample order:1-3 days / Bulk order:7-15days

Packaging Details : Standard package

Reading Mode : 1D 2D

Interface : TTL232 (3.3V) USB

Print Contrast : 30%

Voltage : 3.3V ± 5%

Standby Current : 2mA

Operation Temperature : (-20℃ to 60℃

Storage Temperature : (-40℃ to 80℃

Humidity : 5% to 95%

Sensor Resolution : 648x 488

Dimensions : 38.25 L mm × 19.43 mm H × 27.80 W mm

Maximum Power consumption : 1.4W

Working humidity : 5% - 95%(Non-condensing)

Contact Now

High quality USB Fixed Mount Kiosk Outdoor

2D Barcode Scanner Module For Mobile

Main Features

1. Ultra-Low Voltage&Mini design

2. Data format mode

3. Host edit function

4. Multiple interface

5. IP30

6. 32-bit ARM CPU

7. 200 line/sec

8. Online Upgrade

  • The decode board provides a ZIF 12-pin connector to connect to a 0.5 mm × 12 position FFC/FPC cable .
  • The scan engine has one normal power state,the run state, and three low-power states (idle, standby andsleep) and there are five control parameters .
Type CMOS
Resolution 752x480
Barcode capability 2D:PDF417,QR Code,Data Matrix,Chinese sensible code,etc.
1D:code128,EAN-13,EAN-8,Code39,etc
Precision ≥ 3mil
Interface supported RS-232 (3.3V TTL-level)
Scan of depth 40mm~300mm
print contrast ≥ 30%
Roll 360°@ 0°Pitch and 0°Skew
Pitch 60° @ 0°Roll and 0°Pitch
Skew 60°@ 0°Roll and 0°Skew
Ambient light 0 - 100,000 LUX
Dimensions 38.25 L mm × 19.43 mm H × 27.80 W mm
Maximum Power consumption 1.4W
Voltage 3 ~ 5V
Current Working 350 mA
Standby 50 mA
Weight 25g
Working temperature -5℃～ +45℃
Storage temperature -40℃～+60℃
Working humidity 5% - 95%(Non-condensing)

Multiple Interface Barcode Scan Engine / 2D Barcode Module Host Edit FunctionMultiple Interface Barcode Scan Engine / 2D Barcode Module Host Edit FunctionMultiple Interface Barcode Scan Engine / 2D Barcode Module Host Edit Function
