Small Embedded CCD Barcode Scan Engine Reliable Reading Performance For Kiosk

Name: Small Embedded CCD Barcode Scan Engine Reliable Reading Performance For Kiosk
Brand: symcode
Price: 1 USD

Wholesale Small Embedded CCD Barcode Scan Engine Reliable Reading Performance For Kiosk from china suppliers

Brand Name : symcode

Model Number : MJ-2060S

Certification : CE FCC ROHS IP54

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram

Supply Ability : 50,000pcs per month

Delivery Time : Sample order:1-3 days / Bulk order:7-15days

Packaging Details : Standard package

Reading Mode : Visible red light, wavelength 632nm

Meas : 21.6mm*13*16.2

Interface : USB/TTL-RS232/PS2

Barcode accuracy : ≥4mil/0.1mm@PCS90%

Optical system : Linear CCD Sensor

Operation Temperature : (-20℃ to 60℃

Storage Temperature : (-40℃ to 80℃

CPU : ARM32-bit

Scan Angle : Test Conditions：CODE39,10mil/0.25mm,PCS90% Pitch:±60° Roll: ±30° Skew: ±60°

Depth of field : 40-500mm

Current : 110mA；30mA

Ambient light resistance : 100,000Lux Max

Contact Now

OEM ODM Hot sale 1D mini small engine embedded

CCD barcode scanner module for Kiosk

Features

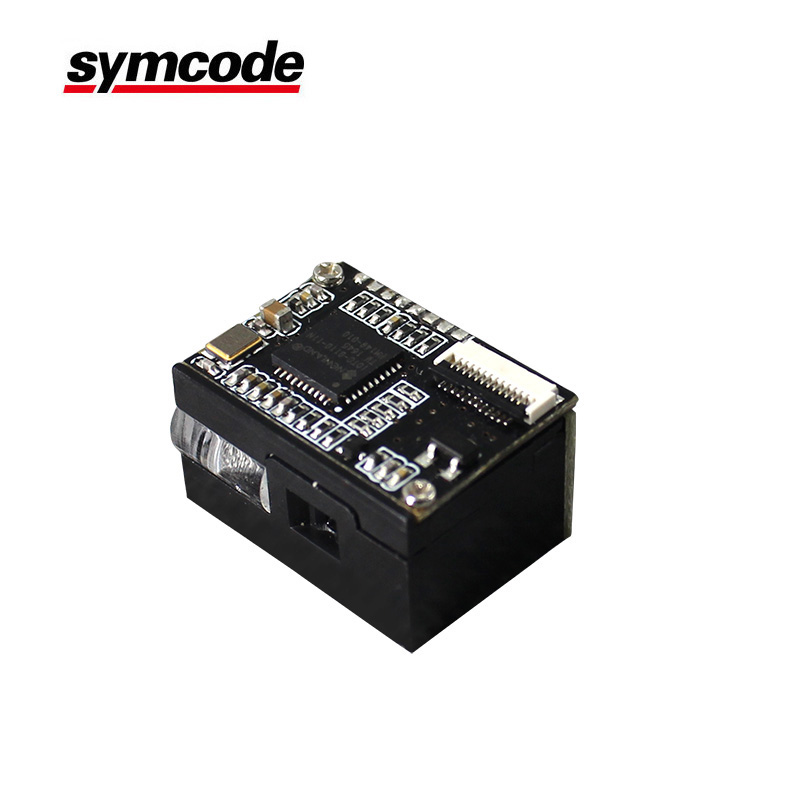

1. MJ-2060S is compact & lightweight scan engine equipped with ARM processor.

2. The user-friendly N1 fully packaged CCD reader, offering easy integration and several configurations to meet a variety of need.

3. Advanced CCD technology provides reliable reading performance for small, damaged or poorly printed codes.

4. MJ-2060S is deal scan engine for OEM design engineers seeking a dependable and inexpensive embedded bar code scanning solution.

light source	Visible red light, wavelength 632nm
Optical system	Linear CCD Sensor
processor	ARM32-bit
Resolution	1500
definition	≥4mil/0.1mm(PCS90%,CODE 39)
Read depth of field	50mm~600mm
Decoding speed	Up to 300 times / sec
Read mode	Manual reading, automatic reading, induction reading
Read angle	Test Conditions:CODE39,10mil/0.25mm,PCS90%
	Tilt Pitch:±60°
	Rotate: ±30°
	Skewed : ±60°
Print contrast	≥25%
Ambient light intensity	0-100000LUX
Reading code system	UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128, Code 39,Code 93, Interleaved 2 of 5, ITF-6, ITF-14,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,etc.
Size	21.6mm1316.2

FAQ

Q1: Can I get some samples? are they free?

A1: Of course, but samples are not free.

Q2: What's the delivery time?

A2: Depend on product and quantity of your order,sample sent to you in 3 work days after you payment

Q3: What about payment?

Q4: Warranty time?

A4: 1 year

Q5: Do you provide EVK for barcode scanner module?

A5: Yes,but not free.

Q6: Product OEM?

A6: Yes, the cost need to be added separately.

Q7: Customer service?

A7: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
