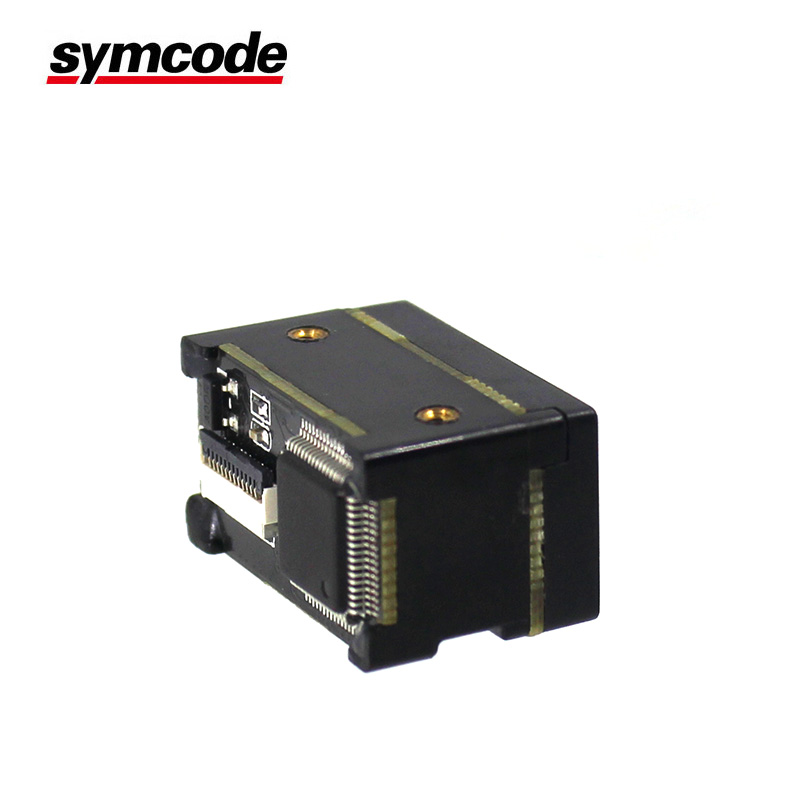

Symcode MJ-2000 Barcode Scan Engine 1.4W Waterproof And Dustproof Design

Product Categories

Shenzhen Alacrity Barcode Technology Co., Ltd

Contact Now

Symcode MJ-2000 Barcode Scan Engine 1.4W Waterproof And Dustproof Design

Name: Symcode MJ2000 Barcode Scan Engine 14W Waterproof And Dustproof Design
Brand: symcode
Price: 1 USD

Wholesale Symcode MJ-2000 Barcode Scan Engine 1.4W Waterproof And Dustproof Design from china suppliers

Brand Name : symcode

Model Number : MJ-2000

Certification : CE FCC ROHS IP54

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram

Supply Ability : 50,000pcs per month

Delivery Time : Sample order:1-3 days / Bulk order:7-15days

Packaging Details : Standard package

Reading Mode : 1D 2D

Meas : 21mm 11mm 13mm

Interface : TTL232 (3.3V) USB

Barcode accuracy : >/=4mil

Focal diatance to front of engine : 40~300mm

Print Contrast : 30%

Voltage : 3.3V ± 5%

Standby Current : 2mA

Operation Temperature : (-20℃ to 60℃

Storage Temperature : (-40℃ to 80℃

Max Power Comsumption : 1.4W

Humidity : 5% to 95%

Sensor Resolution : 648x 488

Contact Now

Waterproof and dustproof design

barcode scanner modul Symcode MJ-2000

Features

1. Products come with self intellectual property;

2. Comfortable operation;

3. Intelligent AGG controlling;

4. Press key comes with up to 3 millions times pressing life;

5. Adopts CMOS technology and advance intelligent Image recognition system, can recognize 1D and 2D code.

6. Adopts red light LED exposure support system, can recognize code promptly even under dark

environment.

FAQ

1. If the goods are damaged badly, who is responsible for it?

We will be responsible for the damaged goods when it is damaged during transport, and we can exchange the new goods for you.

2. How do I know that you have sent the products out?

Once the prodcuts are sent out, a tracking number will be provided so that you can check where your goods at all times.

Type	2D image scanning module
Sensor Resolution	648x 488
Barcode types	Codabar,Code 11,Code 39/Code 93,UPC/EAN,Code 128/EAN128,Interleaved 2 of 5,Matrix 2 of 5,MSI Code,Standard 2 of 5,QR code,PDF417,Data matrix
Barcode accuracy	>/=4mil
Focal diatance to front of engine	40~300mm
Ambient Light	0~100000LUX
Print Contrast	30%
Scan Angle	Pitch angle: 28° Skew tolerance:21.5°
Max Power Comsumption	1.4W
Voltage	3.3V ± 5%
Max Current	135mA
Operation Current	58mA
Standby Current	2mA
Operation Temperature	(-20℃ to 60℃
Storage Temperature	(-40℃ to 80℃
Humidity	5% to 95%
Dimensions:	21mm 11mm 13mm
Weight	7g
