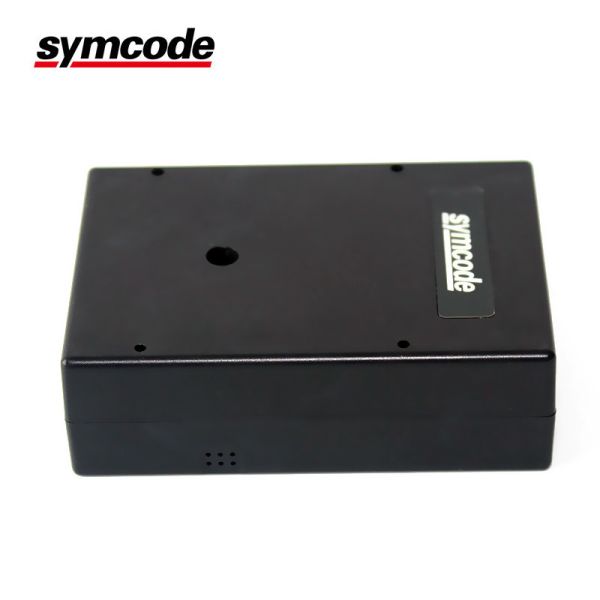

Industrial 1D laser Fixed Mount Bar Code Scanner
Module Fixed Barcode Scanner
Mechanical/Electrical
Voltage: 5V
Current Operation: 68mA; Idle 48mA
Scanner Material: Eco-friendly, ABS+Rubber
Environment
Operation Temperature: -20°-45°
Storage Temperature: -20°-45°
Humidity: 5%-85%
Light Intensity: Daylight, 4000Lux
Decode Error Rate: less than 1/8 million
Print Contrast Signal: ≥30°
Scan Angel: Yaw(Skew) 45° Pitch 60°
Safety: Full quakeproof, dustproof, antiknock-design and EMI Shielding
| Type | Handheld Laser Bar code Scanner |
| Light Source | 650-670nm(Visible Laser ) |
| Scan Rate | 100 scans/second |
| Reading preciseness | 0.10mm(4mil) |
| Interface | PS2 ,Rs232,USB and more |
| Reading Distance | 2.5-600mm(100%UPC/EAN) |
| Barcode types | EAN-8/13, UPC-A/E,code 39/93/128,EAN128,Codabar, industrial 2 of 5, interleave 2 of 5.matrix 2 of 5, MSI, |
| scan scope | 10mm-250mm |
| Scanning angle | inclination angle 45˚,Elevation angle 60˚ |
| Bit error rate | 1/3million |
| Power voltage | 5V |
| Safety performance | CE & Rohs
Accord with national level 2laser safety standards |
| Dimension | 150mm*50mm*65mm |
| Weight | 129g |
