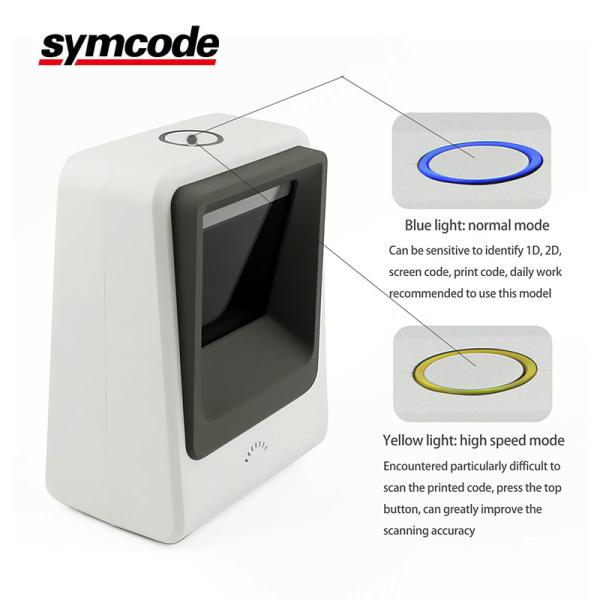

General Purpose Fixed Mount Scanner / Supermarket 2D Barcode Scanner High Speed

Product Categories

Shenzhen Alacrity Barcode Technology Co., Ltd

Contact Now

General Purpose Fixed Mount Scanner / Supermarket 2D Barcode Scanner High Speed

Name: General Purpose Fixed Mount Scanner Supermarket 2D Barcode Scanner High Speed
Brand: symcode
Price: 1 USD

Wholesale General Purpose Fixed Mount Scanner / Supermarket 2D Barcode Scanner High Speed from china suppliers

Brand Name : symcode

Model Number : MJ-7580

Certification : CE / RoHS / FCC

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Western Union, D/P, D/A, L/C

Supply Ability : 50,000pcs per month

Delivery Time : Sample order:1-3 days / Bulk order:7-15days

Packaging Details : Carton box

Reading Mode : IMAGE

Decode : 2D bar code

Interface : RS232 USB

Optical mode : 20 lines and Single line

Scan Rate : 1120 scans/second

Barcode types: : 1D 2D

Color : Black white

EMC : "FCC part 15 Class B\European Union EMC directive "

Certificate : CE FCC ROHS IP54

Print Contrast : 30%min

Reading preciseness : 5mil

Scan angle : "Roll：0-360° Pitch：±65°; ±60°"

Contact Now

Omnidirectional Desktop General Purpose Supermarket

2D Barcode Scanner 1120 scans / second

All our products provide 12 months warranty.

1) During the warranty period, should your SUNPHOR product prove to be defective, free to call or email us for warranty repair instructions.

2) We have service technician provide telephone or email diagnostic service to you. Customer's satisfication is our permanent principle.

3) Regarding to the defective product, we will exchange the spare parts without charge for parts or labor. And the broken product or spare parts don’t need to be sent back to us, we will send new ones with your next order.

MJ7580
PERFORMENCE CHARACTERISTIC
Light source	Laser 650+/-20nm
Decode capability	Code car, Code 11,Code 93 MSI ,Code 128,UCC/EAN-128,code39,EAN-28,EAN-13,UPC-A,ISBN, Industrial 25,Interleaved 25,Standard 25,2/5 Matrix & 2D
2.4G	10m visual range
Normal Working Distance	6-30cm
Processor	ARM 7 72Mhz
Decode Rate	200 Decodes per second
Decode Mode	Single-line aiming
Print contrast Minimum	30%
EEPROM	256Kb can store 2600pcs bar codes
PHYSICAL CHARACTERISTI
Material	ABS

Weight	130g (With battery)
Color	Black

interface	Mini USB
Communicate	USB wired
Resolution	3-5mil
Scan speed	200times/second
Scan Width	30mm
Scan Angles	Roll 30 ,Pitch 75,Yaw 65
Scan code	Auto off mode/Manual mode
Cylinder Horizontal Scan	Diameter 35 mm
Indication	Beeper LED
Dustproof	hermetic for against dust in the air
Storage Temperature	-10 C-50C / 14 F-122 F
Operation Temperature	0 C-50 C / 32 F-122 F
Voltage	DC 5V 1A

General Purpose Fixed Mount Scanner / Supermarket 2D Barcode Scanner High Speed

Product Tags:

desktop barcode scanner

omni directional scanner

General Purpose Fixed Mount Scanner / Supermarket 2D Barcode Scanner High Speed Images
